LUYTEN

Australian Made Logo

MOBILE ROBOTIC SYSTEM

PLATYPUS PRINTER

THE FOURTH INDUSTRIAL REVOLUTION

ADVANCED HOME CONSTRUCTION

Construction printer

      The PLATYPUS 3D Concrete Printer is at the forefront of the fourth industrial revolution. Complete for reliable and quality results in projects that are both large and small. Powered with an advanced software package and the TURISOPS proprietary extruding mechanism, this printer can construct profiles with complex geometries of up to 1 metre in height and width, including unlimited length. With unlimited length, the PLATYPUS printer is able to print large structural components for vast possibilities in design.



This enables emerging architects to validate challenging concepts. It will also enable small and large builders to optimise their operation and have an edge to compete for more geometrically demanding projects while remaining financially feasible. PLATYPUS... levels the playing field.

PLATYPUS Mobile

THE FOURTH INDUSTRIAL REVOLUTION

PLATYPUS ROBOTIC SYSTEM

Australian Made Logo

PLATYPUS

Full robotic system

Certified Australian Made Product

Designed by Robotics and Aerospace Engineers

Top Australian and International Standards

IP67 Rated

REVOLUTIONIZE CONSTRUCTION

PLATYPUS IS THE FIRST COMMERCIAL CONCRETE 3D PRINTER IN THE SOUTHERN HEMISPHERE

  • Dynamic mobile gantry system

  • Robust rugged IP 67 rated

  • High precision and repeatability

PLATYPUS SPECIFICATIONS

The first additive manufacturing solution to produce high quality concrete structures with guaranteed cost reduction, increased precision and reduced errors.

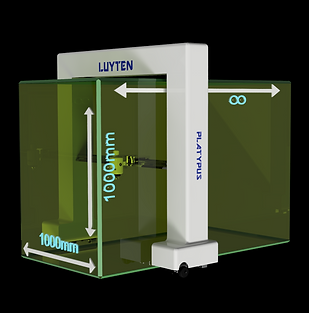

PRINT LENGTH

UNLIMITED

PRINT HEIGHT

1000mm

3d printer

PRINT WIDTH

1000mm

MAX PRINTING SPEED

200mm/s

LAYER HEIGHT

Up to 40mm

LAYER WIDTH

Up to 40mm

MOVEMENT SYSTEM

Stepper Motor

PRINTER SET UP TIME

20 min

UNASSEMBLY TIME

20 min

MANNING

2 Operators

INTERFACE

Control Panel/Touch Pendant

SLICER SOFTWARE

LUYTEN

POWER SUPPLY

3 phase 230v 60Hz

POWER USAGE

1000w

VOLTAGE INPUT

230v

INGRESS PROTECTION

IP67

Wooden forms that cost 60% of total costs

Significantly high levels of cement (high CO2 footprint)

Rebars for strength

High logistical cost through pre-fabricated requirements

TRADITIONAL METHODS

Construction site

Slow, material wasteful, heavily vulnerable to delays and defects

Complex geometry without formwork's

Significant reduction of cement use (low CO2 footprint)

Eliminate rebars using more sustainable strengthening agents

Low logistical cost through onsite printing

LUYTEN

3DCP Equipment

Waste reducing efficiency with rapid high quality results

DATA DRIVEN DIGITAL CONSTRUCTION

UPON REQUEST WE OFFER DATA DRIVEN CONSTRUCTION CAPABILITIES FOR IN-SITU QUALITY CHECKING
